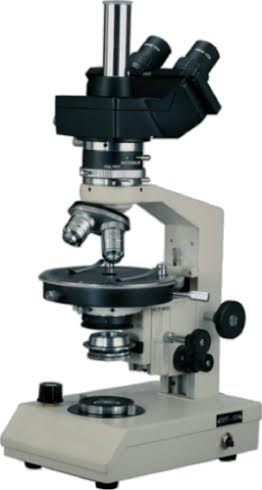

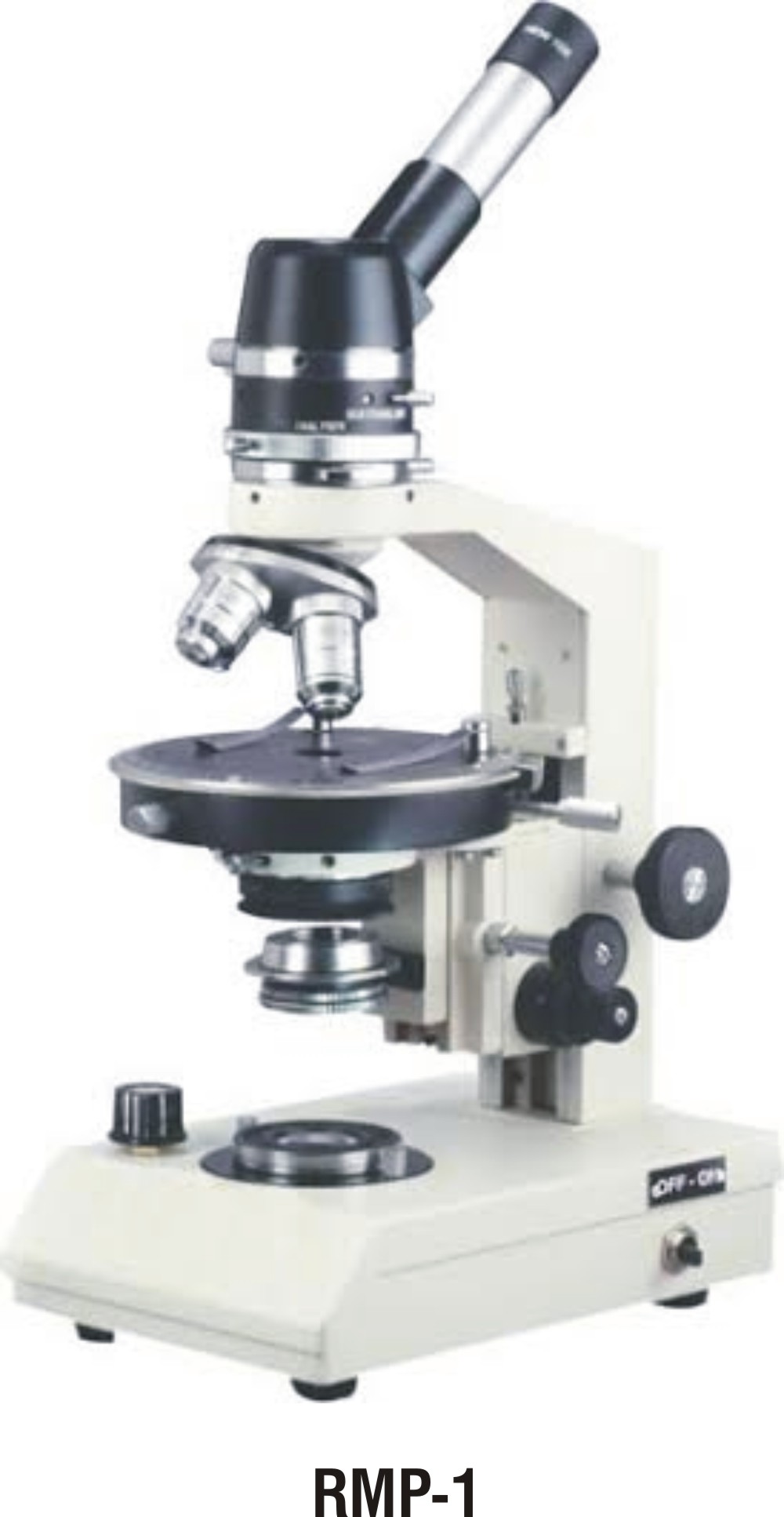

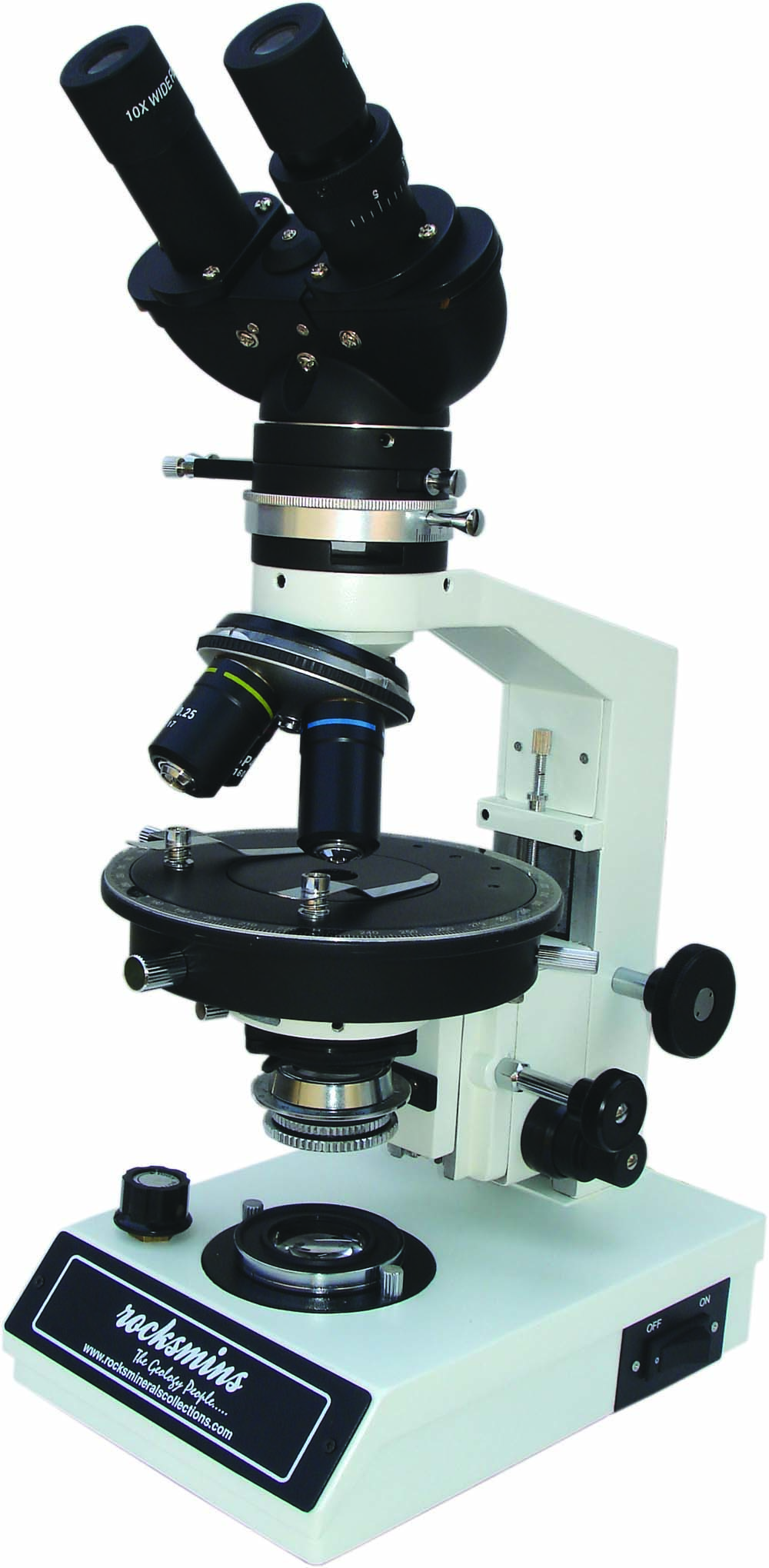

Polarizing Microscope Large rectangular heavy stable base having electrical fittings concealed inside. Microscopes are available with Monocular, Binocular and Trinocular heads. Compact ball-bearing centerable rotating stage, graduated with vernier, lock and stage specimen clips. By vertical movement of stage, coarse adjustment by rack-pinion knobs and fine movement, equipped with a set of Polariser, Analyser and Bertrand lens along with Mica & Gypsum Plates, Achromatic DIN Objectives. P4x / 0.10, P10x / 0.25 and P40x / 0.65 SL. Widefield eyepieces WF 10x (Paired) and WF 10x with Cross. Fully rotatable swing-out Polarizer and an abbe-condenser with Accessories Vinyl Cover, Duster, Cleaning Brush, Filter, Spare Bulb, Fuse and Operating Instruction Manual In full mould, Styrofoam / Thermocol Container.
Would like further information concerning RMP 01 microscope such as the head inclination, illumination and intermediate tube
please brief your technical document
